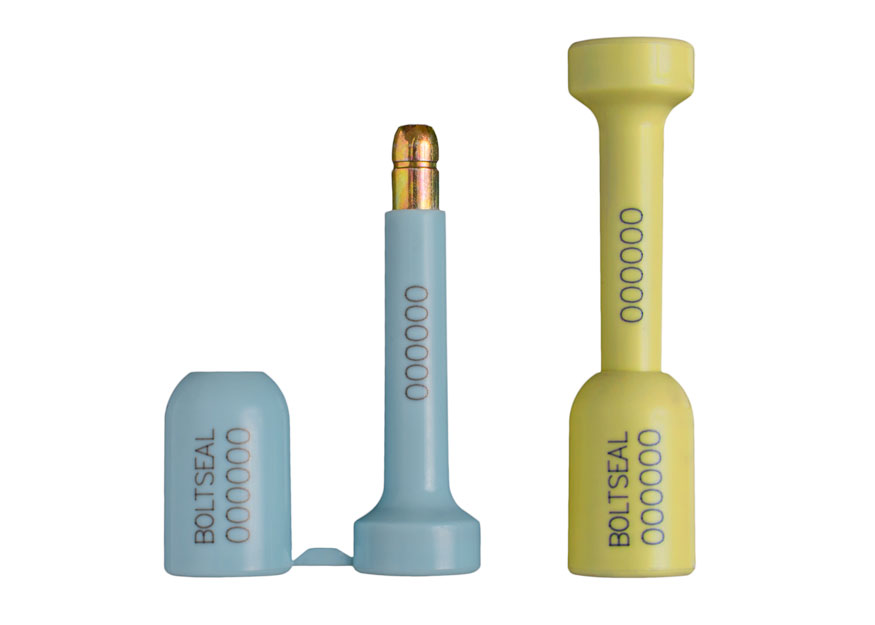

The Acme Bolt Seal is an IS 17712:2010 compliant high security bolt seal, designed for high value ISO container cargo shipments. The plastic coated bolt and locking bush is laser marked with identical sequential numbers for added security.

When locked the bolt spins freely to confirm seal integrity. To safeguard against counterfeiting Certificates of IS 17712:2010 compliance are available for distribution to interested parties by email only to ensure digital verification that they are genuine.

As a Bolt seal that is 'H' compliant to IS 17712:2010 this seal qualifies as a High Security Seal that may be used
on U.S.A. bound containers moving under USCBP C-TPAT regulations.

Recommended applications

Rail, Sea & Air Container Freight, Doors, Hatches,
Trailers, Storage.

Material

Carbon steel with zinc chromate finish
Bolt - High visibility polypropylene coated
Lock Bush - High visibility polypropylene coated

Acceptance

• IS 17712:2010 'H' compliant High Security Seal
• HM Revenue & Customs High Barrier Seal Class 1
• EU Regulation 2454/93, Article 386, Annex 46A
• US In-Bond Security

Available Operating Length

38mm

Dimensions

Bolt - 19.0mm dia head and 7.9mm dia shaft
Bush - 18.5mm dia head reducing to 12.0mm

Average Breaking Strength

Tensile Pull Strength - 27.31(kN)
Shear Test - 907.2(kg-f)
Impact Test at 18º C - 43-53(Nm)
Impact Test at -27º C - 42-50(Nm)
Bending Test - 74(Nm)
